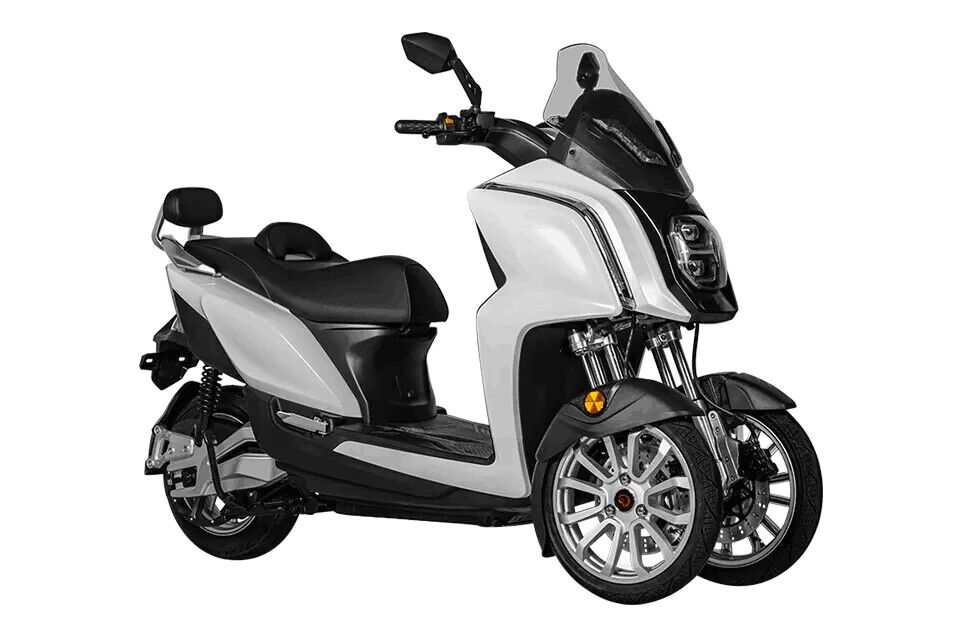

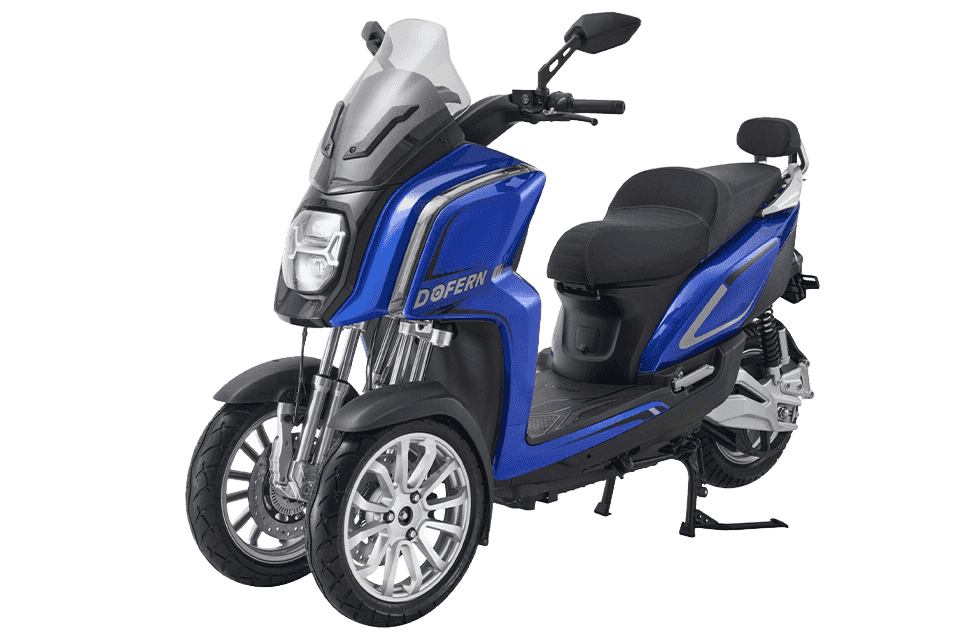

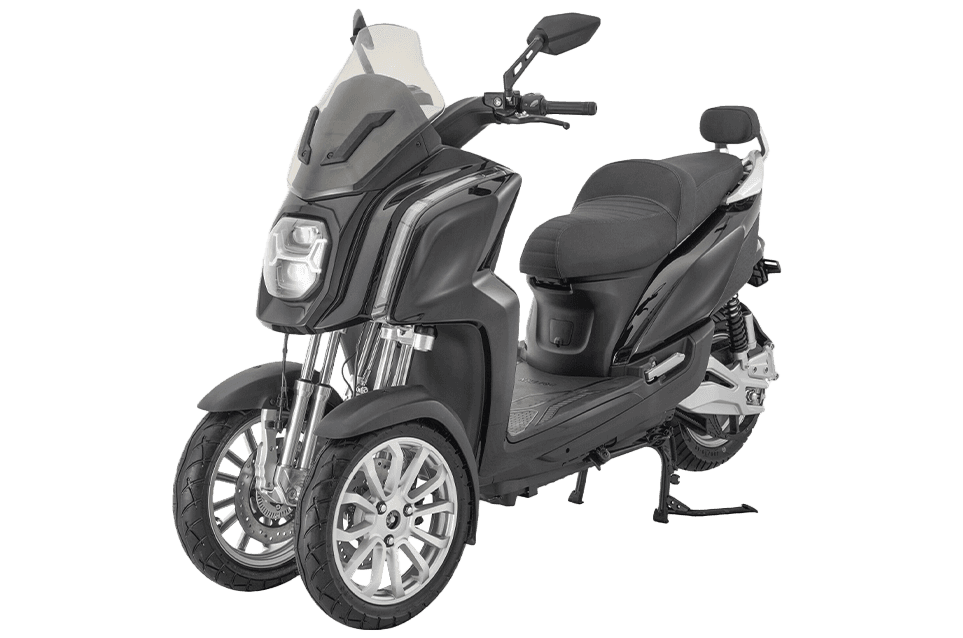

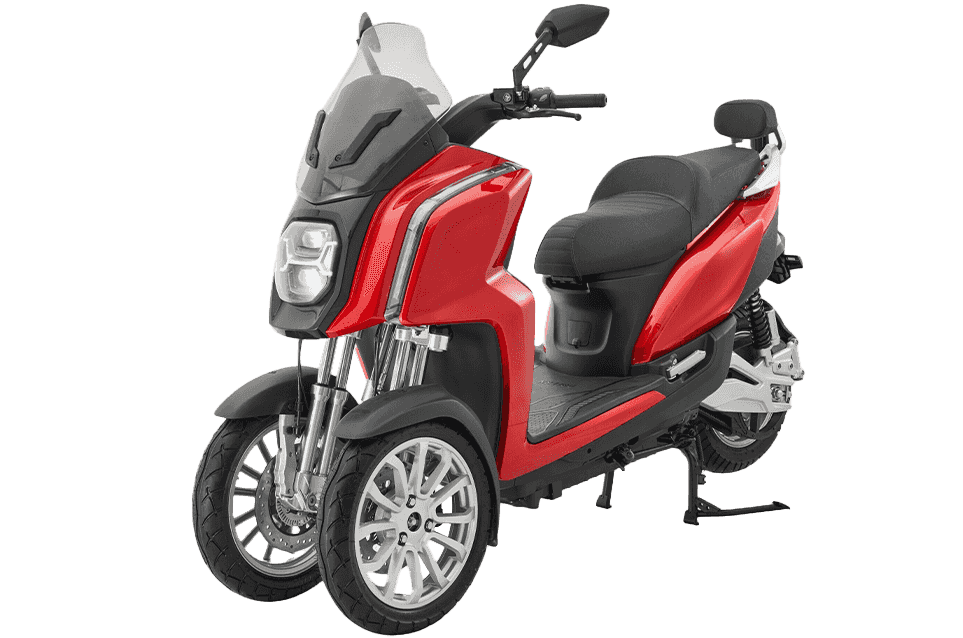

DF01/DF02 Three-wheeled E-Motorcycle

Light Color:

Description
Inquiry

Model	DF02 5.0kW	DF02 3.0kW
Dimension	(1975×760×1435)mm	(1975×760×1435)mm
Wheelbase	1435mm	1435mm
Wheeltrack (front)	420mm	420mm
Rated Power	5000W	3000W
Motor Type	Mid-Drive Motor	Mid-Drive Motor
Transmission	Belt Drive	Belt Drive
Voltage	60V	60V
Battery Model	80AH Lithium Battery	40AH Lithium Battery
Charge Time	6.5H	3.5H
Front Tire	100/80-14	100/80-14
Rear Tire	130/70-12	130/70-12
Seat Height	780mm	780mm
Curb Weight	150kg	150kg
Top Speed	95km/h	45km/h
* Range	115km	65km
Gradeability	25%	25%
Ground Clearance	155mm	155mm
Electric Balance System	Include	Optional （Extra payment）
Braking System	ABS+Disk Brakes	CBS+Disk Brakes
Mechanical Parking System	Include	Include
Shock Absorber	Gasbag Shock Absorber	Regular
Dashboard	7-inch TFT Screen	7-inch TFT Screen
Lighting	LED	LED
Reverse Gear	Include	Include
Keyless	Include	Include
Colors	White、Black、Silver、Blue、Red	White、Black、Silver、Blue、Red
Packaging Size	（20307901260）mm	（20307901260）mm
Container	30PCS/40'HQ	30PCS/40'HQ
*The Range is derived from an average speed of 40km/h, simulated by regular weather, 75-80kg attached weight, and tested in the laboratory, and is for reference only. In addition, weather reasons, driving habits, road conditions, etc., are all comprehensive factors determining the actual range.

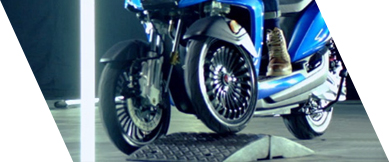

Electric Balanced Stand (EBS)

Electric Balanced Stand (EBS) enables D1-3000W/5000W to possess the self-balance ability, especially convenience while waiting for traffic lights or short-time parking

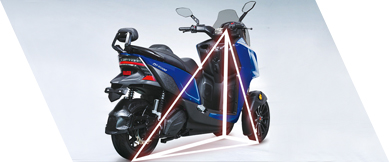

The Mutual Leaning System(MLS)

The front suspension designed with the Mutual Leaning System(MLS) gives the ability to coordinate the two front wheels and creates an agile and stable driving experience.

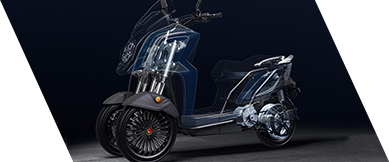

Great Sense of Acceleration

A built-in high-power motor has 65Nm. Maximum, provides incredible agility, impeccable balance, and freedom of movement.

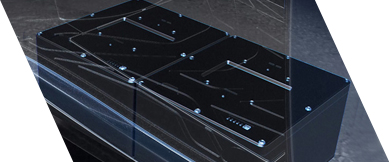

High-performance Lithium Batteries

The shockproof, waterproof, and removable high-performance lithium batteries with an intelligent BMS battery management system can achieve long endurance.

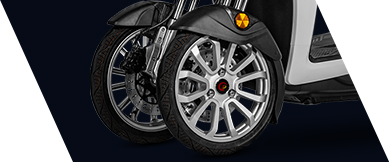

Double Shock Absorbers

Double shock absorbers are set in the front, reducing 30% of road shock and increasing comfort and stability.
7-inch TFT Screen

The regular and sports models on the 7-inch TFT screen can easily switch, and the screen light can adjust automatically according to ambient light.
